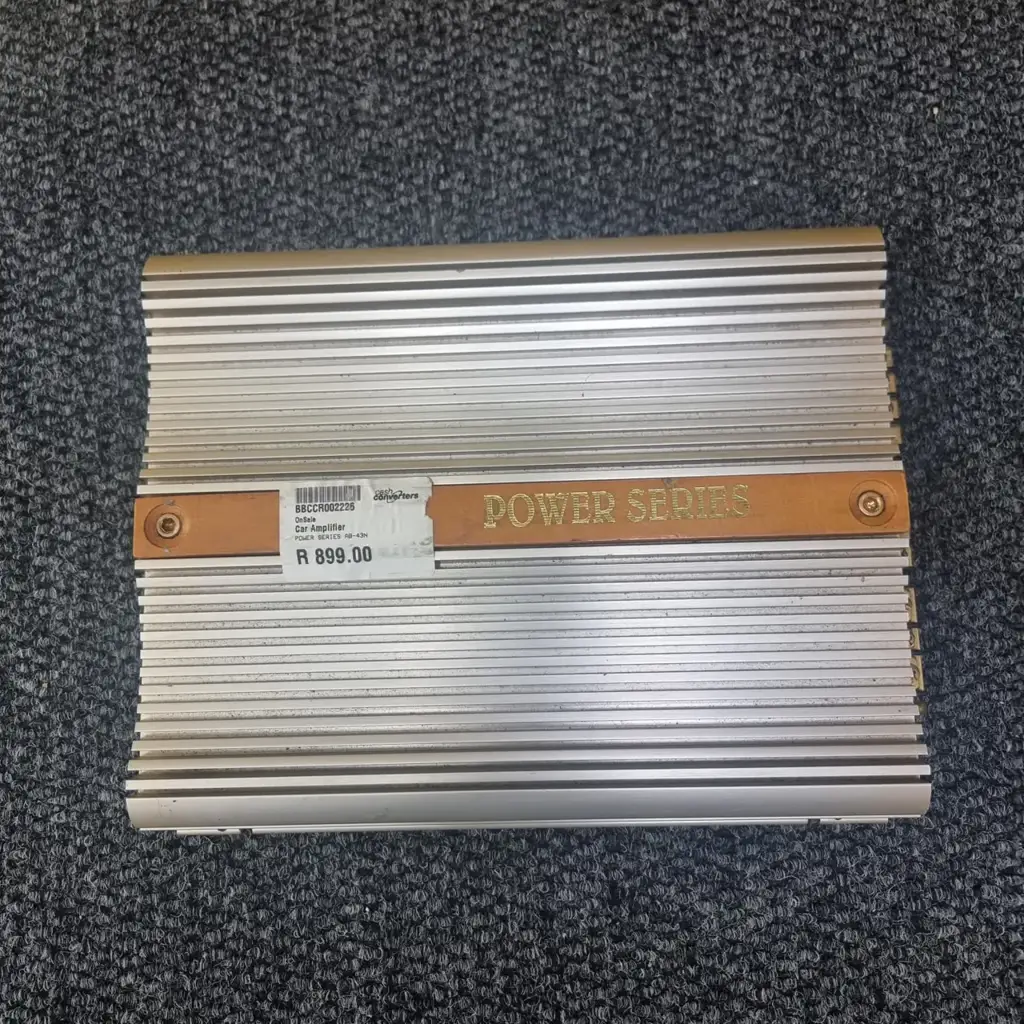

Power Series Car Amplifier – Model R4-3N (4-Channel).

Model: R4-3N Type: 4-Channel Car Amplifier Amplifier Class: Class AB Maximum Power Output: 2400W (Peak) RMS Power Output: 4 × 60W RMS @ 4Ω 4 × 90W RMS @ 2Ω 2 × 180W RMS (Bridged @ 4Ω) Frequency Response: 20Hz – 20kHz Signal-to-Noise Ratio: ≥ 90dB Input Sensitivity: 0.2V – 6V Low Pass Filter (LPF): Yes (Adjustable) High Pass Filter (HPF): Yes (Adjustable) Bass Boost: Yes Bridgeable: Yes Approximate Dimensions Length: ±32 – 36 cm Width: ±22 – 26 cm Height: ±5 – 7 cm Weight: ±2.5 – 4 kg Features Aluminium heat sink casing Short circuit protection Thermal protection Overload protection RCA inputs Screw terminal speaker outputs

Model: R4-3N
Type: 4-Channel Car Amplifier
Amplifier Class: Class AB
Maximum Power Output: 2400W (Peak)

RMS Power Output:
4 × 60W RMS @ 4Ω
4 × 90W RMS @ 2Ω
2 × 180W RMS (Bridged @ 4Ω)
Frequency Response: 20Hz – 20kHz
Signal-to-Noise Ratio: ≥ 90dB
Input Sensitivity: 0.2V – 6V
Low Pass Filter (LPF): Yes (Adjustable)
High Pass Filter (HPF): Yes (Adjustable)
Bass Boost: Yes
Bridgeable: Yes

Approximate Dimensions
Length: ±32 – 36 cm
Width: ±22 – 26 cm
Height: ±5 – 7 cm
Weight: ±2.5 – 4 kg

Features
Aluminium heat sink casing
Short circuit protection
Thermal protection
Overload protection
RCA inputs
Screw terminal speaker outputs
