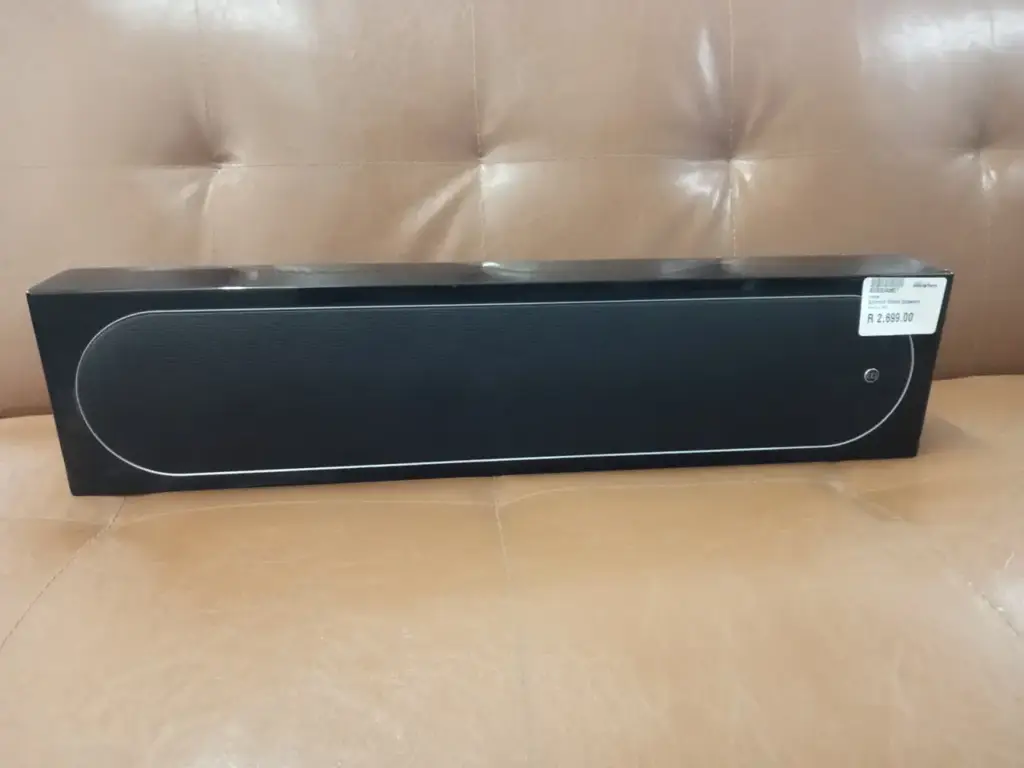

Radius 225

Frequency Response 80 Hz — 35 kHz Sensitivity (1W@1M) 87 dB Nominal Impedance 6 ohms Power Handling (RMS) 100 W System Power Handling (RMS) 150 W Recommended Amplifier Requirements 40 — 150 W Maximum SPL 107 dBa Bass Alignment Bass reflex - Front ported Drive Unit Complement 2 x 4" (100 mm) C-CAM cone bass/mid driver 1 x 1" (25 mm) C-CAM Gold Dome tweeter Cabinet Dimensions (H x W x D) 140 x 610 x 67 mm (51/2 x 24 x 25/8") Cabinet Dimensions (Including Grille and Terminals (H x W x D)) 140 x 610 x 77 mm (51/2 x 24 x 31/16") Cabinet Dimensions (Including Grille and Bracket (H x W x D)) 140 x 610 x 84 mm (51/2 x 24 x 35/16") Pre-Construction Bracket Dedicated bracket included Weight 4.2 kg (9 lb 4 oz) Sold As Single Unit
